Asking $70,000 for car turn-key, $10,000 for 2004 27' Haulmark Edge trailer
with generator, compressor, aluminum cabinets, L-workbench, diamond plate floor,
smooth aluminum interior walls, tire rack, flat panel TV, DVD/VCR, 9000 lbs
winch (click HERE for trailer pics). $78,000 for car and trailer. E-mail
webmaster@learntodragrace.com
for more info.
|
|
|
|
It's a one-of-a-kind Z06! |
At over 1100 rear wheel horsepower and 960 pounds of torque, she is currently the world's quickest C5 Corvette and the very first Z06 to break the 8 second barrier. |
|
|
|
|
|
|
|
Driver's seat |
A light-weight drag seat and 5-point Stroud harness keep the driver securely fastened during racing. |
|
|
|
|
|
|
|
Cockpit |
All pertinent information is within the driver's field of vision. |
|
|
|
|
|
|
|
A-pillar gauges |
Gauge pod on the A-pillar holds Autometer fuel pressure and boost gauges as well as a Raptor shift light. |
|
|
|
|
|
|
|
Interior |
A view from the passenger's side. The passenger's seat is removed during racing to reduce the weight of the car. |
|
|
|
|
|
|
|
Shifter |
B&M Pro Stick shifter with an electric Dedenbear shifter selenoid is used to change gears of the Freddy Brown-built Powerglide transmission. Parachute release handle is located right next to the shifter. Data logging in Big Stuff 3 and a Pro Torque variable stall converter are activated via a switch next to the shifter housing. |
|
|
|
|
|
|
|
Glovebox |
The glove compartment holds the Innovative boost controller and alcohol injection control module. |
|
|
|
|
|
|
|
Boost Controller |
Innovative boost controler enables the driver to configure boost setting for the launch as well as 5 different stages of boost for down-track. Stages can be activated manually by pushing a button or automatically by time, rpm, or gear. |
|
|
|
|
|
|
|

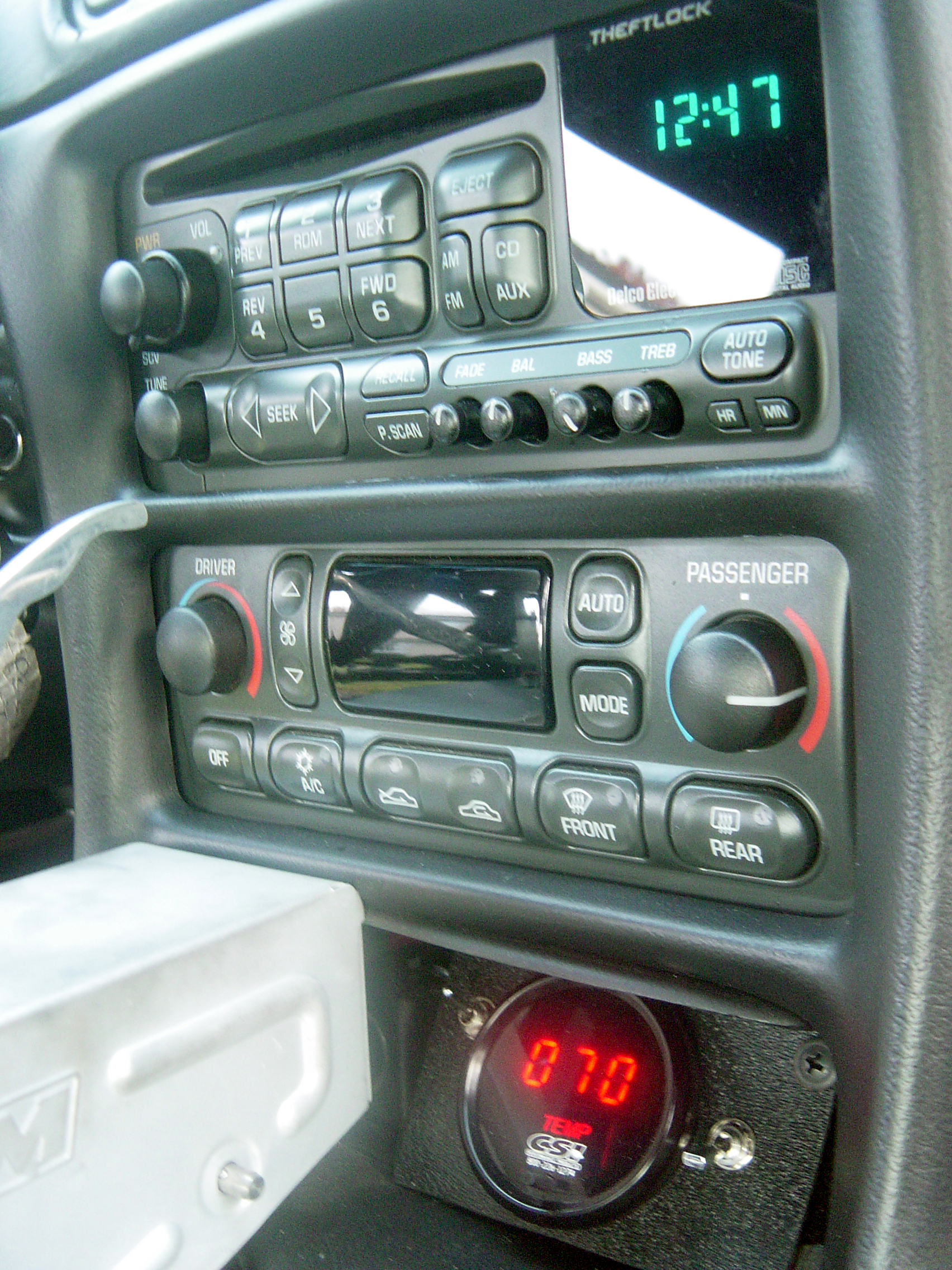

Interior |
Full stock interior was retained including the stereo and climate control. A water temperature gauge resides next to the shifter within the driver's field of vision. |
|
|
|
|
|
|
|
Engine Management |
Third generation Big Stuff 3 engine managament computer is used to control the engine's performance and log data from each race. Changes to the tune can be made at the track by attaching a laptop computer to Big Stuff 3 via a serial port. |
|
|
|
|
|
|
|

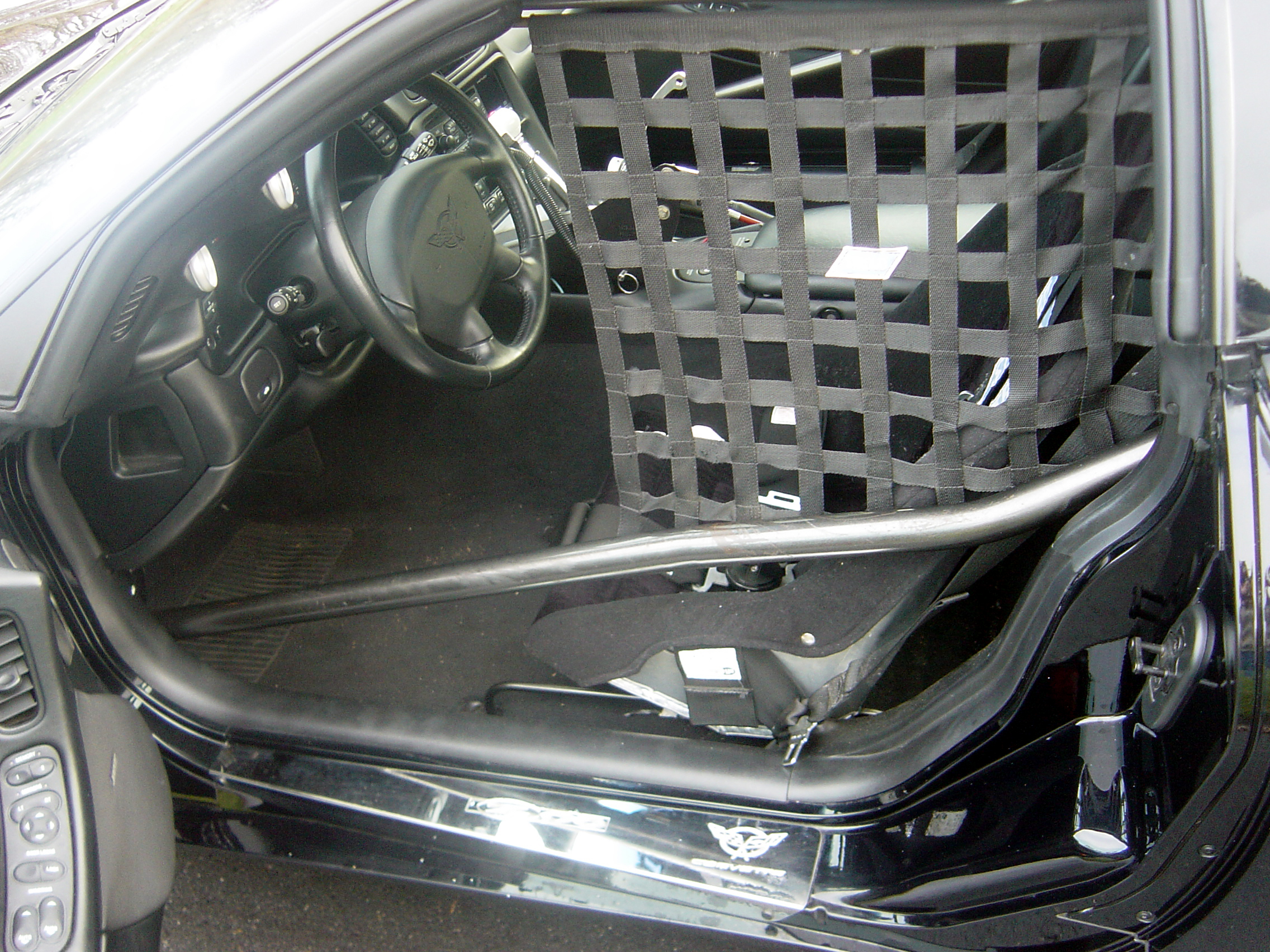

Window net |
A stroud window safety net is attached to the chromoly Neverlift Racecraft-built roll cage. |
|
|
|
|
|
|
|
Roll cage |
The profesionals at Neverlift Racecraft designed and built this chromoly roll cage. It has been certified by NHRA to elapsed times of 7.50. |
|
|
|
|
|
|
|
Trunk |
A 5 gallon fuel cell and the battery reside in the trunk. VP Fuels C16 116 octane race fuel is used at the track. |
|
|
|
|
|
|
|
Parachute |
A Stroud parachute is attached to the frame of the vehicle. It can be quickly deployed in case brakes alone can't slow the vehicle down before the sand trap. |
|
|
|
|
|
|
|
Rear |
It's what most of my competitors see. |
|
|
|
|
|
|
|
|
|
|
|
|
Front |
The air flows over the intercooler through several openings in the front fascia. Conical air filters are located at the front of the vehicle as well. |
|
|
|
|
|
|
|
|
|
Engine bay |
346 cid LS6 block, LS6 heads, twin T67 Precision turbos, Tial waste gates and blow off valve, Comp cam, Diamond pistons, 9.2:1 compression, Eagle rods, air-to-air intercooler. |
|
|
|
|
|
|
|
|
|
Intercooler and blow off valve |
|
|
|
|
|
|
|
|

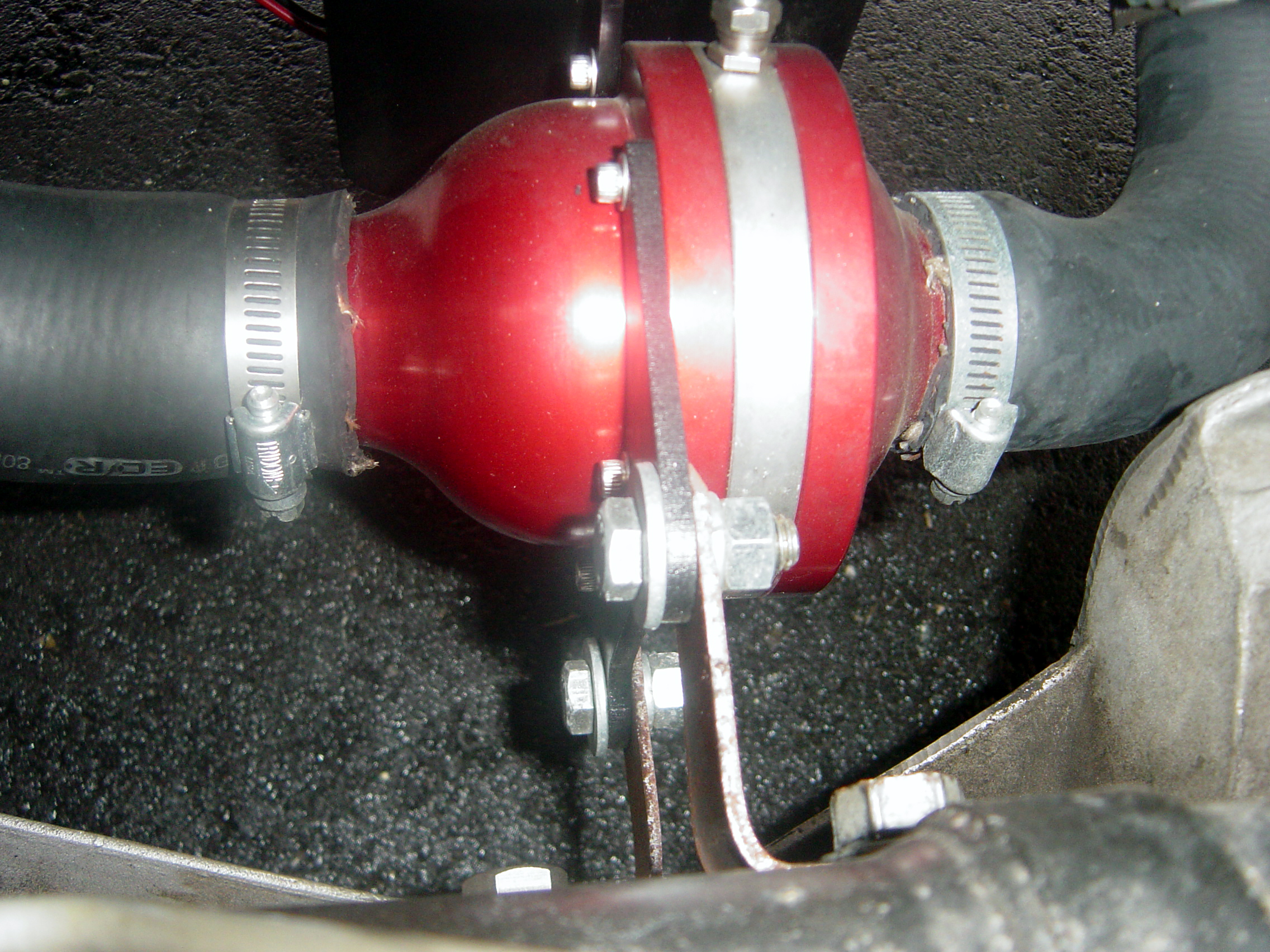

Electric water pump |
An electric water pump is tuned on while the car is being serviced between races to keep the coolant temperature down. Along with the pump, fans are also operating to draw heat away from the engine bay and intercooler. |
|
|
|
|
|
|
|
|
Brakes |
Strange brakes are installed to slow the vehicle down. |
|
|
|
|
|
|
|
Wheels |
Rear Weld wheels are wrapped in Mickey Thompson ET Drag slicks. 28 X 11.5 X 15. |
|
|
|
|
|
|
|
Axles |
Strange axles are used to help propel the car to sub-8.5 second elapsed times. |
|
|
|
|
|
|
|
Wheels |
Weld wheels are not only beautiful, they are also extremely light-weight. |
|
|
|
|
|
|
|
12-bolt rear |
Because of its efficiency, a 12-bolt rear was chosen by Neverlift Racecraft for this application |
|
|
|
|
|
|
|
Shocks |
QA1 coil-over shocks in the rear. |
|
|
|
|
|
|
|
Shocks |
Adjustable QA1 front shocks are set at their softest setting to help lift the front end during launches and settle it back onto the track gently. Front suspension is stock. |
|
|
|
|
|
|
